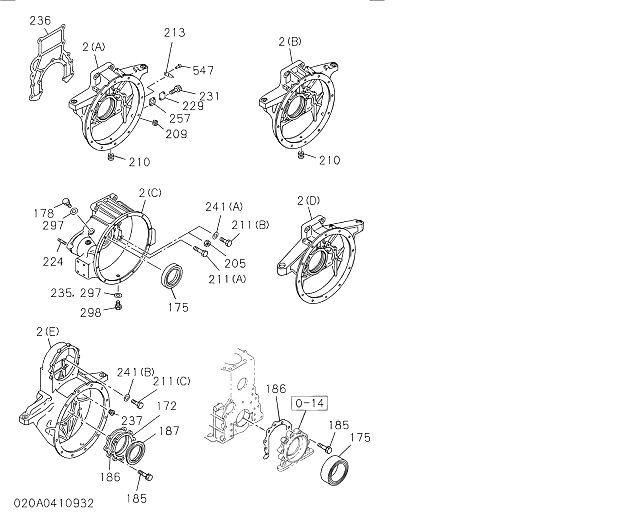

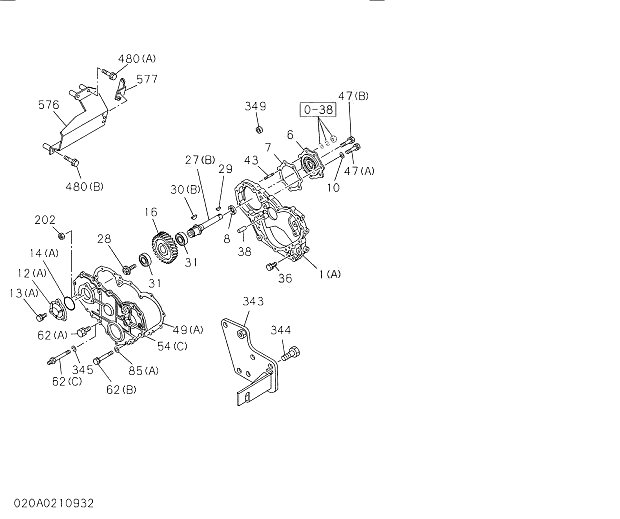

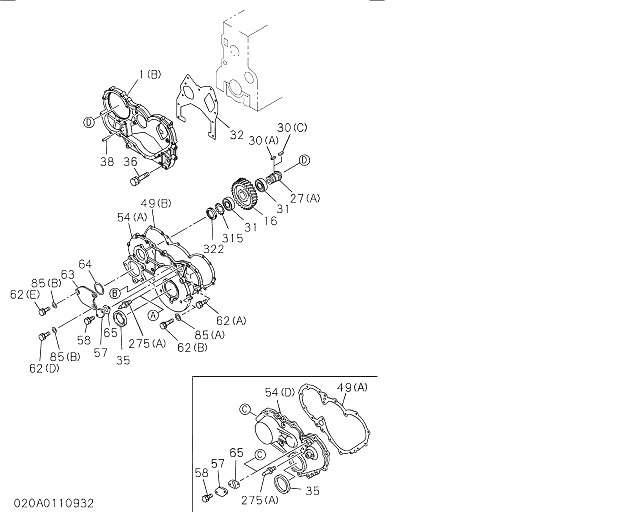

Двигатели-6wg1-xysa02-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
111131005351CASE; TIMING GEAR200510-200512C
189803009501CASE; TIMING GEAR200601-200610A
189803228651CASE; TIMING GEAR200611-
002(A)11134168701HOUSING; FLYWHEEL200510-
3510962555621SEAL; OIL,CRANKSHAFT FRT200510-200611C
3589761730801SEAL; OIL,CRANKSHAFT FRT200612-
036(A)109020007010BOLT; GEAR CASE200510-
036(B)2818100003BOLT; GEAR CASE200510-200512A
036(B)2815100003BOLT; GEAR CASE200601-
036(C)2818102504BOLT; GEAR CASE200510-200512A
036(C)2815102504BOLT; GEAR CASE200601-
036(D)2818103501BOLT; GEAR CASE200510-200512A
036(D)2815103501BOLT; GEAR CASE200601-
036(E)10902014601BOLT; GEAR CASE200510-
37909164514011WASHER; PL,GEAR CASE200510-
4211311900401DOWEL; GEAR CASE COVER200510-
4690441144501STUD; BRG COVER,RR200511-200604A
464401144501STUD; BRG COVER,RR200605-
4911132204411GASKET; GEAR CASE TO COVER200510-200701C
4989806142301GASKET; GEAR CASE TO COVER200702-
051(A)28181030017BOLT; GEAR CASE COVER200510-200512A
051(A)28151030017BOLT; GEAR CASE COVER200601-
051(B)90106584003BOLT; GEAR CASE COVER200510-200512A
051(B)1095584003BOLT; GEAR CASE COVER200601-
051(C)89760348202BOLT; GEAR CASE COVER200510-200610
051(C)90916451413BOLT; GEAR CASE COVER200611-
054(A)11132117431COVER; GEAR CASE200510-
6311174918601COVER; P/S200510-
6410962342101GASKET; COVER,P/S200510-
809115011002NUT; COVER200510-200602A
809118011002NUT; COVER200603-
8350950311103WASHER; PL,COVER200510-
8711134915121COVER; TACHOMETER DRIVE200510-201001
9310962341601GASKET; ELBOW200510-201001
11589730611311SENSOR; REVOLUTION,ENG SPD200510-
1429161451001WASHER; COVER200908-201012
14290916451422WASHER; COVER201101-
1699115010804NUT; COVER200510-200602
1699118010804NUT; COVER200603-
17510962555711SEAL; OIL,CR/SHF,RR200510-200611C
17589761730901SEAL; OIL,CR/SHF,RR200612-
1772868061601BOLT; SENSOR200510-200512A
1772865061601BOLT; SENSOR200601-
191(A)11134924101STAY; FLYWHEEL HSG200510-
191(B)11134924001STAY; FLYWHEEL HSG200510-
19210902000812BOLT; STAY TO HSG200510-
19699166640004BOLT; STAY TO C/BL200510-200512C
1961695640004BOLT; STAY TO C/BL200601-
19799166640016WASHER; PL,STAY200510-
20691134904901COVER; STARTER CHECK HOLE200510-
211(A)2808083508BOLT; HSG200510-200512A
211(A)2805083508BOLT; HSG200601-
211(B)99166645002BOLT; HSG200510-200512
211(B)1695645002BOLT; HSG200601-
211(C)992361445010BOLT; HSG200510-
211(D)2879144001BOLT; HSG200510-200512A
211(D)2876144001BOLT; HSG200601-
21311132704511POINTER; FLYWHEEL HSG200510-
21911134913102COVER; POINTER200510-
22490441143503STUD; STARTER200510-200604A
2244401143503STUD; STARTER200605-
241992361445112WASHER; PL,HSG200510-
252(A)2808082001BOLT; GEAR BOX200510-200512A
252(A)2805082001BOLT; GEAR BOX200601-201001
252(B)2808086001BOLT; GEAR BOX200510-200512A
252(B)2805086001BOLT; GEAR BOX200601-200907
252(B)10904407211BOLT; GEAR BOX200908-201001
25410930005814STUD; POINTER & COVER200510-
27811134912702WASHER; COVER FIX200510-
33190441103002STUD; P/S PUMP200510-200604A
3314401103002STUD; P/S PUMP200605-201009
33189817806102STUD; P/S PUMP201010-
4802808081601BOLT; COVER200510-200512A
4802805081601BOLT; COVER200601-
487(A)11131901201COVER; HOLE200510-
487(B)11174919401COVER; HOLE200510-
