Двигатели-6wg1-xqa02-020 timing gear case and flywheel housing

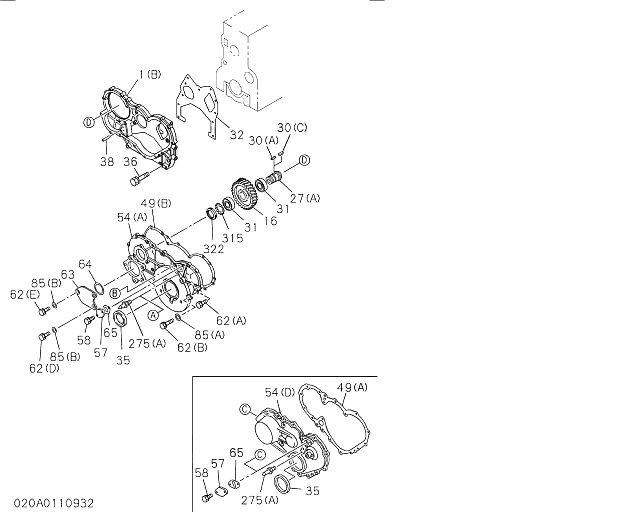

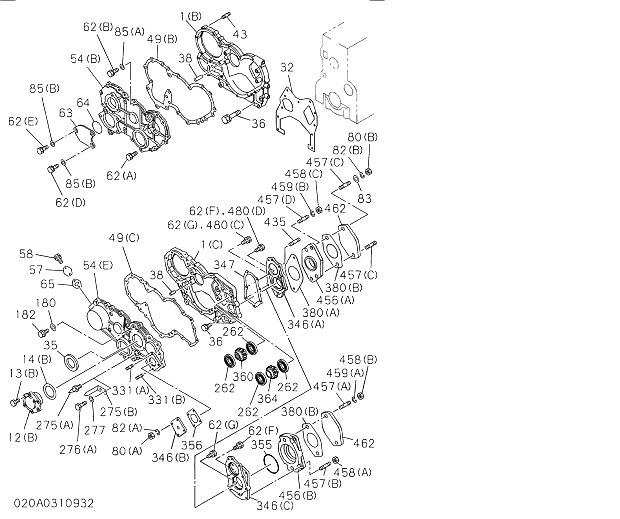

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
00111131005351CASE; TIMING GEAR200007-200512C
00189803009501CASE; TIMING GEAR200601-200610A
00189803228641CASE; TIMING GEAR200611-201001
00189815224901CASE; TIMING GEAR201002-
002(A)11134163521HOUSING; FLYWHEEL200102-
03510962555621SEAL; OIL,CRANKSHAFT FRT200007-200611C
03589761730801SEAL; OIL,CRANKSHAFT FRT200612-
036(A)109020007010BOLT; GEAR CASE200007-200505
036(A)89815224919BOLT; GEAR CASE200506-
036(B)02818100003BOLT; GEAR CASE200007-200505
036(B)89815224922BOLT; GEAR CASE200506-200512A
036(B)02815100002BOLT; GEAR CASE200601-
036(C)02818102504BOLT; GEAR CASE200007-200512A
036(C)02815102504BOLT; GEAR CASE200601-
036(D)02818103501BOLT; GEAR CASE200007-200512A
036(D)02815103501BOLT; GEAR CASE200601-
036(E)10902014601BOLT; GEAR CASE200007-
036(F)90980417211BOLT; GEAR CASE200506-
036(G)02818601401BOLT; GEAR CASE200506-200512A
036(G)02815601401BOLT; GEAR CASE200601-
037909164514011WASHER; PL,GEAR CASE200007-
04211311900401DOWEL; GEAR CASE COVER200007-
04690441144501STUD; BRG COVER,RR200007-200604A
04604401144501STUD; BRG COVER,RR200605-
04911132206101GASKET; GEAR CASE TO COVER200007-
05090441104002STUD200007-200604A
05004401104002STUD200605-
051(A)028781040019BOLT; GEAR CASE COVER200007-200512A
051(A)028751040019BOLT; GEAR CASE COVER200601-
051(B)90106584003BOLT; GEAR CASE COVER200007-200512A
051(B)01095584003BOLT; GEAR CASE COVER200601-
051(C)02818104501BOLT; GEAR CASE COVER200007-200512A
051(C)02815104501BOLT; GEAR CASE COVER200601-
051(D)11132902413BOLT; GEAR CASE COVER200009-200312
051(D)89760348203BOLT; GEAR CASE COVER200401-
054(A)11132116821COVER; GEAR CASE200007-
06311174918601COVER; P/S200007-
06410962342101GASKET; COVER,P/S200007-
08009115011002NUT; COVER200007-200602A
08009118011002NUT; COVER200603-
08350950311103WASHER; PL,COVER200007-
08711134915121COVER; TACHOMETER DRIVE200007-
09310962341601GASKET; ELBOW200007-
115(A)18151071311SENSOR; REVOLUTION,ENG SPD200007-
14209161451001WASHER; COVER200908-
16909115010804NUT; COVER200007-200602
16909118010804NUT; COVER200603-
17510962555711SEAL; OIL,CR/SHF,RR200007-200611C
17589761730901SEAL; OIL,CR/SHF,RR200612-
17702808081601BOLT; SENSOR200007-200512A
17702805081601BOLT; SENSOR200601-
191(A)11134924101STAY; FLYWHEEL HSG200007-
191(B)11134924001STAY; FLYWHEEL HSG200007-
19210902000812BOLT; STAY TO HSG200007-
19699166640004BOLT; STAY TO C/BL200007-200512C
19601695640004BOLT; STAY TO C/BL200601-
19799166640016WASHER; PL,STAY200007-
20691134904901COVER; STARTER CHECK HOLE200007-
211(A)02808083508BOLT; HSG200007-200512A
211(A)02805083508BOLT; HSG200601-
211(B)99166645002BOLT; HSG200007-200512C
211(B)01695645002BOLT; HSG200601-
211(C)992361445010BOLT; HSG200007-
211(D)02879144001BOLT; HSG200007-200512
211(D)02876144001BOLT; HSG200601-
213(A)11132704511POINTER; FLYWHEEL HSG200007-
219(A)11134913102COVER; POINTER200007-
22490441143503STUD; STARTER200007-200604A
22404401143503STUD; STARTER200605-
241992361445113WASHER; PL,HSG200007-200202
241992361445212WASHER; PL,HSG200203-
252(A)02808082001BOLT; GEAR BOX200007-200512A
252(A)02805082001BOLT; GEAR BOX200601-
252(B)02808086001BOLT; GEAR BOX200007-200512A
252(B)02805086001BOLT; GEAR BOX200601-200907
252(B)10904407211BOLT; GEAR BOX200908-
25410930005814STUD; POINTER & COVER200007-
27811134912702WASHER; COVER FIX200007-
33190441103002STUD; P/S PUMP200007-200604A
33104401103002STUD; P/S PUMP200605-201009
33189817806102STUD; P/S PUMP201010-
487(A)11131901201COVER; HOLE200007-
