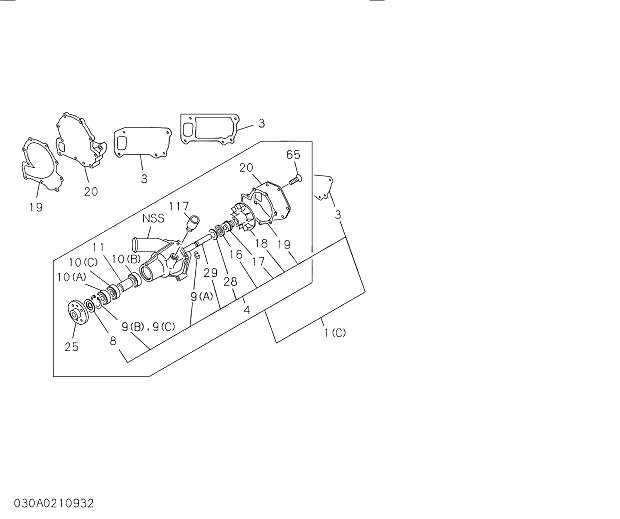

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
| 1 | 1136500611 | 1 | PUMP ASM; WATER,W/GASKET | 198808-200205 | A | |
| 1 | 1136500591 | 1 | PUMP ASM; WATER,W/GASKET | 200206- | ||
| 3 | 1136140121 | 1 | GASKET; PUMP TO C/BL | 198808-199203 | C | |
| 3 | 1136140170 | 1 | GASKET; PUMP TO C/BL | 199204-199602 | A | |
| 3 | 1136140181 | 1 | GASKET; PUMP TO C/BL | 199603- | ||
| 4 | 1878107110 | 1 | REPAIR KIT; WATER PUMP | 198808-200205 | ||
| 4 | 1878124322 | 1 | REPAIR KIT; WATER PUMP | 200206- | ||
| 007(B) | 1136411550 | 1 | PULLEY; WATER PUMP | 199101- | ||
| 9 | 9091801620 | 1 | RING; SNAP,WATER PUMP | 198808- | ||
| 10 | 1098001550 | 2 | BEARING; WATER PUMP | 198808- | ||
| 10 | 1098001960 | 1 | BEARING; WATER PUMP | 198808- | ||
| 11 | 1136340350 | 1 | SPACER; BRG,WATER PUMP | 198808- | ||
| 016(A) | 1096253880 | 1 | SEAL; OIL,WATER PUMP | 198808- | ||
| 016(B) | 1096253890 | 1 | SEAL; OIL,WATER PUMP | 198808- | ||
| 17 | 8943950360 | 1 | SEAL UNIT; WATER PUMP | 198808-200009 | A | |
| 17 | 8943920900 | 1 | SEAL UNIT; WATER PUMP | 200010- | ||
| 18 | 1136210560 | 1 | IMPELLER; WATER PUMP | 198808-200205 | ||
| 18 | 1136210590 | 1 | IMPELLER; WATER PUMP | 200206- | ||
| 024(A) | 501408350 | 1 | BOLT; WATER PUMP | 199005-200512 | A | |
| 024(A) | 506408350 | 1 | BOLT; WATER PUMP | 200601- | ||
| 024(B) | 501408450 | 6 | BOLT; WATER PUMP | 199005-200906 | C | |
| 024(B) | 506408450 | 6 | BOLT; WATER PUMP | 200907- | ||
| 024(C) | 168060950 | 2 | BOLT; WATER PUMP | 199005- | ||
| 25 | 1136420320 | 1 | CENTER; WATER PUMP | 198808- | ||
| 29 | 1136310810 | 1 | SHAFT; WATER PUMP | 198808- | ||
| 54 | 501510250 | 4 | BOLT; PULLEY | 199001-199212 | C | |
| 54 | 500510300 | 4 | BOLT; PULLEY | 199301- | ||
| 55 | 1136190460 | 1 | NOZZLE; OIL FEED,WATER PUMP | 198808- | ||
| 72 | 1096233420 | 1 | GASKET; PUMP TO THERMO HSG | 198808- | ||
| 132 | 9091605100 | 2 | WASHER; PL,WATER PUMP | 198808-200605 | A | |
| 132 | 916105100 | 2 | WASHER; PL,WATER PUMP | 200606- |
