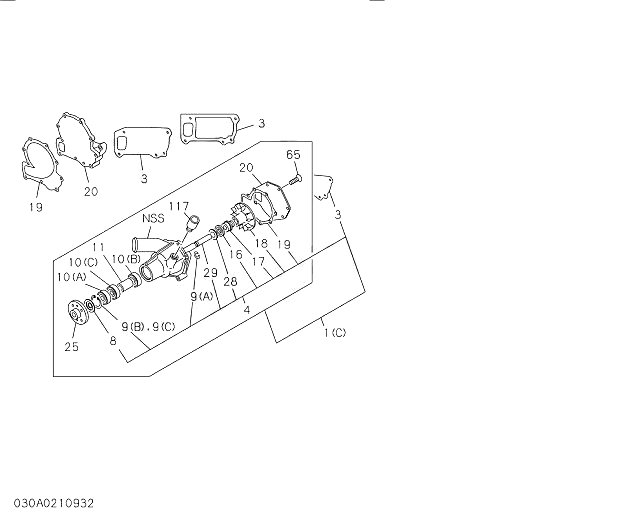

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
| 1 | 1136501333 | 1 | PUMP ASM; WATER,W/GASKET | 200508- | ||
| 3 | 1136140211 | 1 | GASKET; PUMP TO C/BL | 200508- | ||
| 4 | 1878137360 | 1 | REPAIR KIT; WATER PUMP | 200508- | ||
| 7 | 1136412211 | 1 | PULLEY; WATER PUMP | 200508- | ||
| 8 | 1136390290 | 1 | THROWER; DUST,WATER PUMP | 200508- | ||
| 9 | 9091801680 | 1 | RING; SNAP,WATER PUMP | 200508- | ||
| 010(A) | 1098003020 | 1 | BEARING; WATER PUMP | 200508- | ||
| 010(B) | 1098003030 | 2 | BEARING; WATER PUMP | 200508- | ||
| 11 | 1136340440 | 1 | SPACER; BRG,WATER PUMP | 200508- | ||
| 17 | 8943920900 | 1 | SEAL UNIT; WATER PUMP | 200508- | ||
| 18 | 1136210610 | 1 | IMPELLER; WATER PUMP | 200508- | ||
| 19 | 8981917130 | 1 | GASKET; COVER TO BODY | 200508- | ||
| 20 | 1136130520 | 1 | COVER; WATER PUMP | 200508-201105 | A | |
| 20 | 8981866300 | 1 | COVER; WATER PUMP | 201106- | ||
| 24 | 0280808800 | 5 | BOLT; WATER PUMP | 200508-200512 | A | |
| 24 | 0280858110 | 3 | BOLT; WATER PUMP | 200508-200512 | A | |
| 24 | 0280508800 | 5 | BOLT; WATER PUMP | 200601- | ||
| 24 | 0280558110 | 3 | BOLT; WATER PUMP | 200601- | ||
| 25 | 1136420810 | 1 | CENTER; WATER PUMP | 200508- | ||
| 28 | 1095033090 | 1 | WASHER; WATER PUMP | 200508- | ||
| 29 | 1136310930 | 1 | SHAFT; WATER PUMP | 200508- | ||
| 042(A) | 9041108550 | 1 | STUD; WATER PUMP | 200508-200604 | A | |
| 042(A) | 0410108550 | 1 | STUD; WATER PUMP | 200605- | ||
| 54 | 0280810600 | 6 | BOLT; PULLEY | 200508-200512 | A | |
| 54 | 0280510600 | 6 | BOLT; PULLEY | 200601- | ||
| 59 | 1112290190 | 2 | DOWEL; WATER PUMP | 200508-200603 | ||
| 65 | 9030908200 | 2 | SCREW; COVER,WATER PUMP | 200508- | ||
| 101(A) | 8980257870 | 1 | CLIP; WATER PIPE | 200508- | ||
| 101(B) | 1097012840 | 6 | CLIP; WATER PIPE | 200508- | ||
| 117 | 1096613750 | 1 | CONNECTOR; BYPASS | 200508-200603 | ||
| 125 | 0911501080 | 1 | NUT; WATER PUMP | 200508-200602 | ||
| 125 | 0911501100 | 1 | NUT; WATER PUMP | 200508-200602 | A | |
| 125 | 0911801080 | 1 | NUT; WATER PUMP | 200603- | ||
| 125 | 0911801100 | 1 | NUT; WATER PUMP | 200603- |
