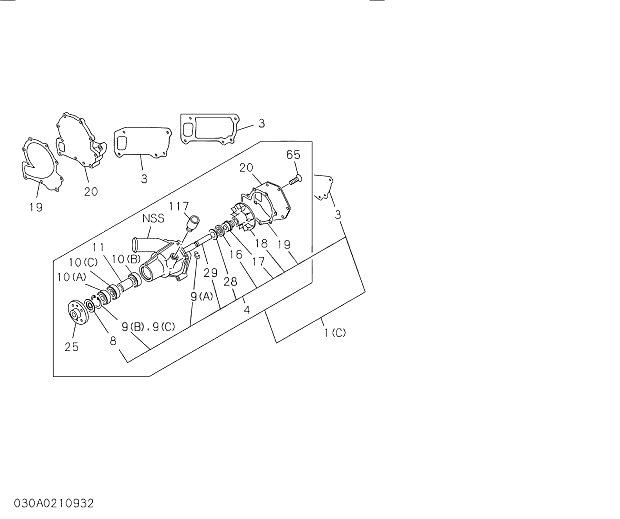

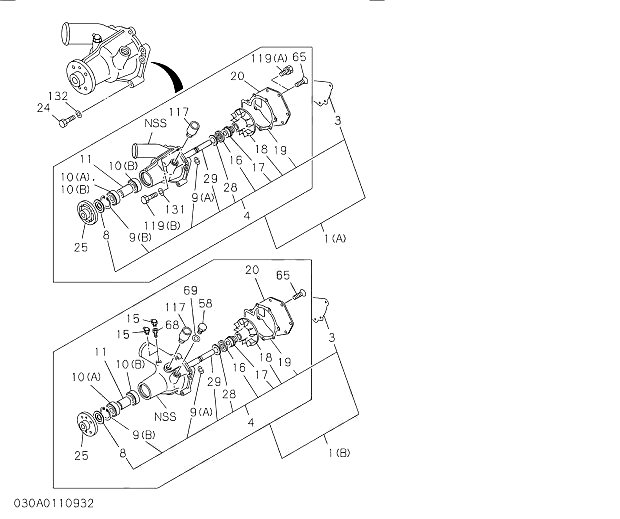

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
| 1 | 1136501333 | 1 | PUMP ASM; WATER,W/GASKET | 200006- | ||
| 3 | 1136140211 | 1 | GASKET; PUMP TO C/BL | 200006- | ||
| 4 | 1878137360 | 1 | REPAIR KIT; WATER PUMP | 200006- | ||
| 7 | 1136411931 | 1 | PULLEY; WATER PUMP | 200006- | ||
| 8 | 1136390290 | 1 | THROWER; DUST,WATER PUMP | 200006- | ||
| 9 | 9091801680 | 1 | RING; SNAP,WATER PUMP | 200006- | ||
| 010(A) | 1098003020 | 1 | BEARING; WATER PUMP | 200006- | ||
| 010(B) | 1098003030 | 2 | BEARING; WATER PUMP | 200006- | ||
| 11 | 1136340440 | 1 | SPACER; BRG,WATER PUMP | 200006- | ||
| 17 | 8943920900 | 1 | SEAL UNIT; WATER PUMP | 200006- | ||
| 18 | 1136210610 | 1 | IMPELLER; WATER PUMP | 200006- | ||
| 19 | 8981917130 | 1 | GASKET; COVER TO BODY | 200006- | ||
| 20 | 1136130520 | 1 | COVER; WATER PUMP | 200006-201105 | A | |
| 20 | 8981866300 | 1 | COVER; WATER PUMP | 201106- | ||
| 24 | 280508800 | 5 | BOLT; WATER PUMP | 200601- | ||
| 24 | 280558110 | 3 | BOLT; WATER PUMP | 200601- | ||
| 25 | 1136420810 | 1 | CENTER; WATER PUMP | 200006- | ||
| 28 | 1095033090 | 1 | WASHER; WATER PUMP | 200006- | ||
| 29 | 1136310930 | 1 | SHAFT; WATER PUMP | 200006- | ||
| 042(A) | 410108550 | 1 | STUD; WATER PUMP | 200605- | ||
| 54 | 280510600 | 6 | BOLT; PULLEY | 200601- | ||
| 65 | 9030908200 | 2 | SCREW; COVER,WATER PUMP | 200006- | ||
| 125 | 911801080 | 1 | NUT; WATER PUMP | 200603- | ||
| 125 | 911801100 | 1 | NUT; WATER PUMP | 200603- |
