Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |

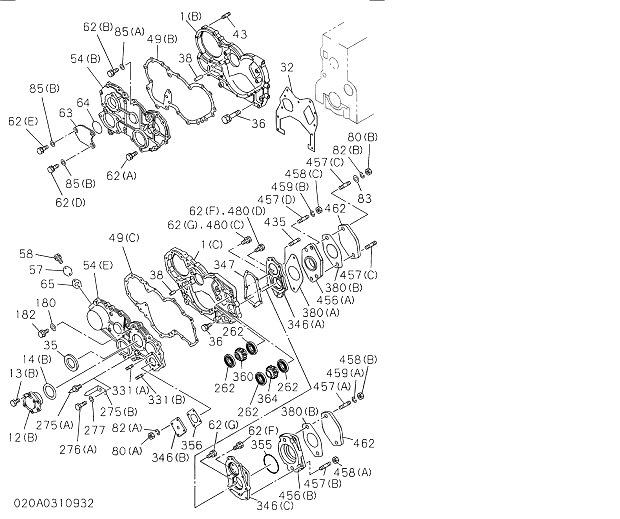

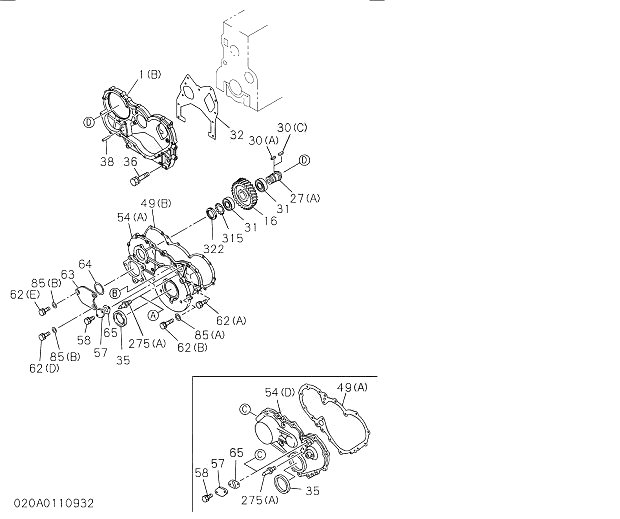

001(A) | 5113110113 | 1 | CASE; TIMING GEAR | 200107- | |

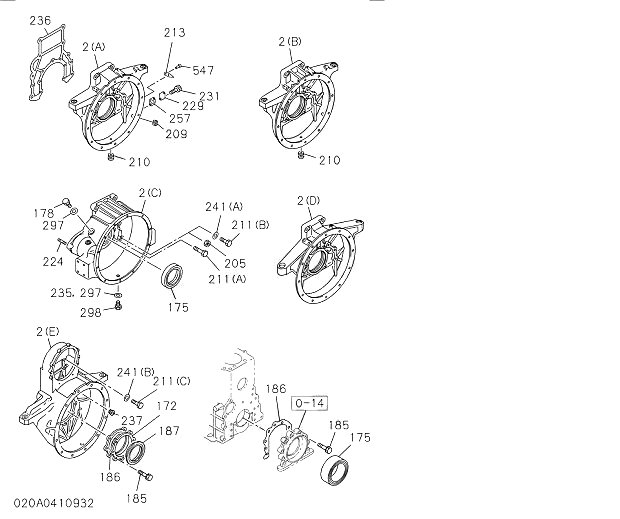

002(B) | 1113415850 | 1 | HOUSING; FLYWHEEL | 200207- | |
032 | 8943706711 | 1 | GASKET; GEAR CASE TO C/BL | 200204- | |
035 | 1096254380 | 1 | SEAL; OIL,CRANKSHAFT FRT | 198508- | |
036 | 0280508450 | 2 | BOLT; GEAR CASE | 200601- | |
036 | 0286508200 | 4 | BOLT; GEAR CASE | 200601- | |
038 | 9081510180 | 1 | PIN; GEAR CASE COVER | 198508- | |
049(A) | 1113220600 | 1 | GASKET; GEAR CASE TO COVER | 200107- | |
054(D) | 1113210790 | 1 | COVER; GEAR CASE | 198508- | |
057 | 5113210090 | 2 | COVER; TIMING CHECK HOLE | 198508- | |
058 | 0280506120 | 4 | BOLT; CHECK HOLE COVER | 200601- | |
062(A) | 0286508250 | 6 | BOLT; COVER | 200601- | |
062(B) | 0280508500 | 3 | BOLT; COVER | 200601- | |
065 | 8970276011 | 2 | GASKET; COVER,TIMING CHECK HOLE | 198508- | |
175 | 8970728231 | 1 | SEAL; OIL,CR/SHF,RR | 198508- | |
205 | 0911802140 | 1 | NUT; HSG | 200603- | |
211(B) | 0288614450 | 5 | BOLT; HSG | 200601- | |
211(B) | 0288614600 | 2 | BOLT; HSG | 200601- | |
211(B) | 0505408250 | 7 | BOLT; HSG | 200601- | |
224 | 0440112350 | 3 | STUD; STARTER | 200605- | |
275(A) | 5113270090 | 1 | POINTER; TIMING CHECK HOLE | 198508- | |
