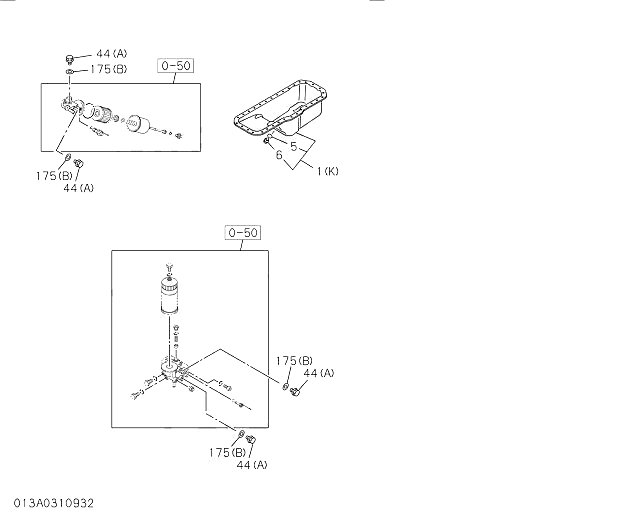

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
001(C) | 1113608610 | 1 | PAN ASM; OIL | 198508- | |
002(A) | 1117604201 | 1 | GAUGE; OIL LEVEL | 200309- | |
005 | 1096230570 | 1 | GASKET; PLUG,OIL DRAIN | 199807- | |
006 | 9096620120 | 1 | PLUG; OIL DRAIN | 198508- | |
008(A) | 1117665390 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 200110- | |
009 | 5096230020 | 1 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 200110- | |
010 | 0280508100 | 1 | BOLT; GUIDE TUBE | 200601- | |
012 | 1233355270 | 1 | BRACKET; TUBE,OIL LEVEL GAUGE | 200309- | |
016 | 1113671320 | 1 | GASKET; OIL PAN TO C/BL | 200301- | |
023 | 0505408180 | 32 | BOLT; OIL PAN | 200907- | |
188 | 0280510160 | 2 | BOLT; BRKT,TUBE | 200601- | |
