Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |

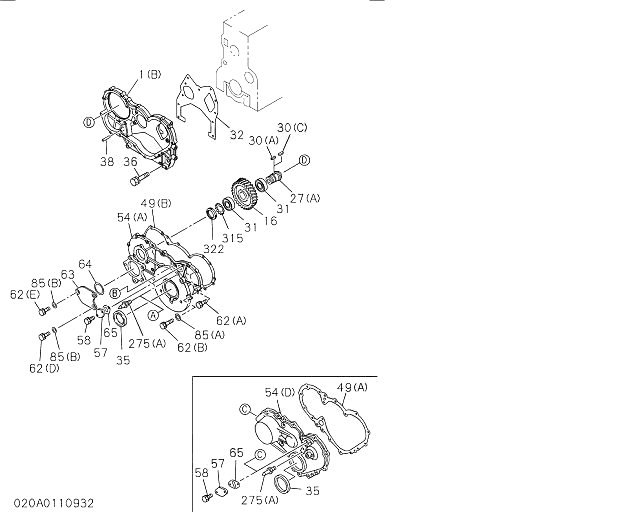

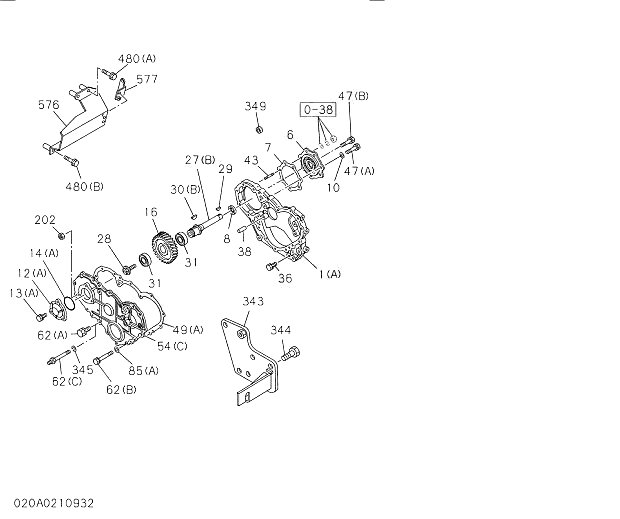

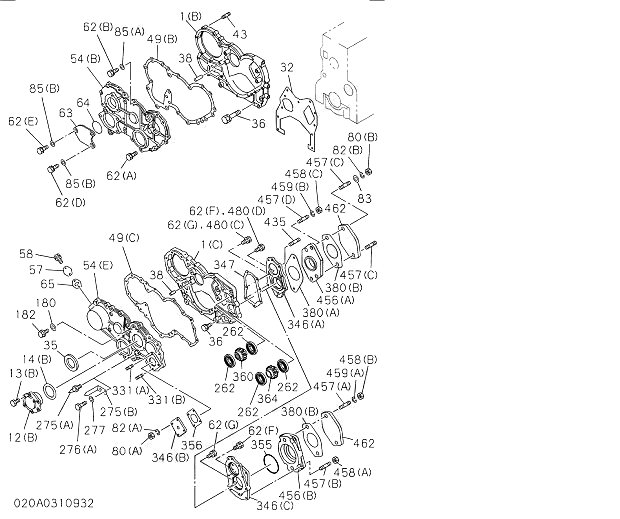

001(A) | 5113110113 | 1 | CASE; TIMING GEAR | 198508-200106 | |
001(A) | 5113110114 | 1 | CASE; TIMING GEAR | 200107- | |

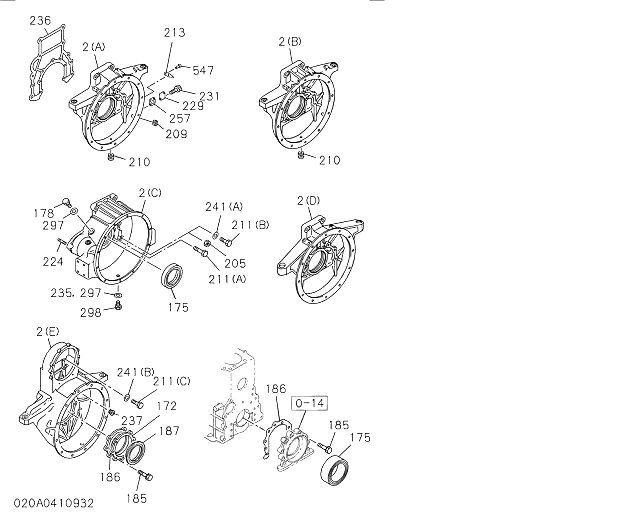

002(B) | 1113415850 | 1 | HOUSING; FLYWHEEL | 198508-200206 | |
002(B) | 5113110115 | 1 | HOUSING; FLYWHEEL | 200207- | |
32 | 8943706711 | 1 | GASKET; GEAR CASE TO C/BL | 198508-200203 | |
32 | 8943706712 | 1 | GASKET; GEAR CASE TO C/BL | 200204- | |
35 | 1096254380 | 1 | SEAL; OIL,CRANKSHAFT FRT | 198508- | |
36 | 280808450 | 2 | BOLT; GEAR CASE | 199705-200512 | A |
36 | 286808200 | 4 | BOLT; GEAR CASE | 199705-200512 | A |
36 | 280508450 | 2 | BOLT; GEAR CASE | 200601- | |
36 | 286508200 | 4 | BOLT; GEAR CASE | 200601- | |
38 | 9081510180 | 1 | PIN; GEAR CASE COVER | 198508- | |
049(A) | 1113220600 | 1 | GASKET; GEAR CASE TO COVER | 200101-200106 | |
049(A) | 9081510181 | 1 | GASKET; GEAR CASE TO COVER | 200107- | |
054(D) | 1113210790 | 1 | COVER; GEAR CASE | 198508- | |
57 | 5113210090 | 2 | COVER; TIMING CHECK HOLE | 198508- | |
58 | 280806120 | 4 | BOLT; CHECK HOLE COVER | 199705-200512 | |
58 | 280506120 | 4 | BOLT; CHECK HOLE COVER | 200601- | |
062(A) | 286808250 | 6 | BOLT; COVER | 199909-200512 | A |
062(A) | 286508250 | 6 | BOLT; COVER | 200601- | |
062(B) | 280808500 | 3 | BOLT; COVER | 199909-200512 | A |
062(B) | 280508500 | 3 | BOLT; COVER | 200601- | |
65 | 8970276011 | 2 | GASKET; COVER,TIMING CHECK HOLE | 198508- | |
175 | 8970728231 | 1 | SEAL; OIL,CR/SHF,RR | 198508- | |
205 | 911602140 | 1 | NUT; HSG | 199704-200602 | A |
205 | 911802140 | 1 | NUT; HSG | 200603- | |
211(A) | 500408250 | 7 | BOLT; HSG | 198508-200512 | A |
211(B) | 288914450 | 5 | BOLT; HSG | 199702-200512 | A |
211(B) | 288914600 | 2 | BOLT; HSG | 199702-200512 | A |
211(B) | 288614450 | 5 | BOLT; HSG | 200601- | |
211(B) | 288614600 | 2 | BOLT; HSG | 200601- | |
211(B) | 505408250 | 7 | BOLT; HSG | 200601- | |
224 | 9944112350 | 3 | STUD; STARTER | 198508-200604 | A |
224 | 440112350 | 3 | STUD; STARTER | 200605- | |
275(A) | 5113270090 | 1 | POINTER; TIMING CHECK HOLE | 198508- | |
297 | 9095714160 | 1 | GASKET; PLUG,HSG | 198508- | |
298 | 9992023160 | 1 | PLUG; TAPER SCREW | 198508-200606 | A |
298 | 920024160 | 1 | PLUG; TAPER SCREW | 200607- | |
