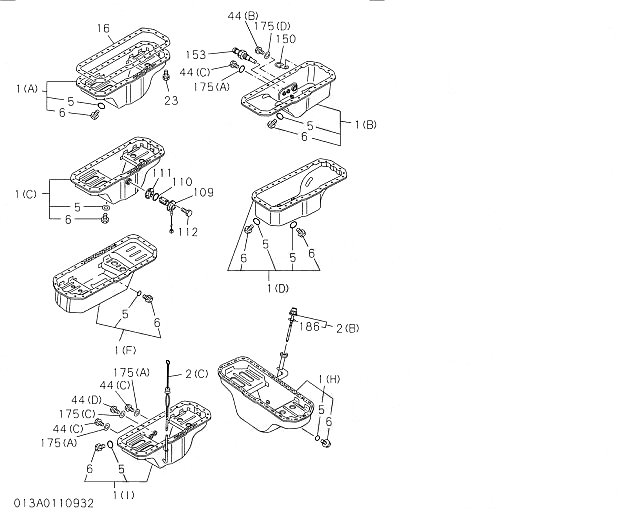

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
| 001(A) | 1113607752 | 1 | PAN ASM; OIL | 198508- | |
| 002(A) | 1117604201 | 1 | GAUGE; OIL LEVEL | 200110- | |
| 5 | 1096230570 | 1 | GASKET; PLUG,OIL DRAIN | 199807- | |
| 6 | 9096620120 | 1 | PLUG; OIL DRAIN | 198508- | |
| 008(A) | 1117665390 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 200110- | |
| 9 | 5096230020 | 1 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 200110- | |
| 10 | 280808100 | 1 | BOLT; GUIDE TUBE | 200110-200308 | |
| 10 | 9096620121 | 1 | BOLT; GUIDE TUBE | 200309-200512 | |
| 10 | 280508100 | 1 | BOLT; GUIDE TUBE | 200601- | |
| 12 | 1233355270 | 1 | BRACKET; TUBE,OIL LEVEL GAUGE | 200110-200308 | |
| 12 | 9096620122 | 1 | BRACKET; TUBE,OIL LEVEL GAUGE | 200309- | |
| 16 | 1113671320 | 1 | GASKET; OIL PAN TO C/BL | 200002-200212 | |
| 16 | 9096620123 | 1 | GASKET; OIL PAN TO C/BL | 200301- | |
| 23 | 500408180 | 32 | BOLT; OIL PAN | 198508-200302 | |
| 23 | 9096620124 | 32 | BOLT; OIL PAN | 200303-200906 | A |
| 23 | 505408180 | 32 | BOLT; OIL PAN | 200907- | |
| 188 | 280810160 | 2 | BOLT; BRKT,TUBE | 200110-200308 | |
| 188 | 9096620125 | 2 | BOLT; BRKT,TUBE | 200309-200512 | |
| 188 | 280510160 | 2 | BOLT; BRKT,TUBE | 200601- | |
