| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |

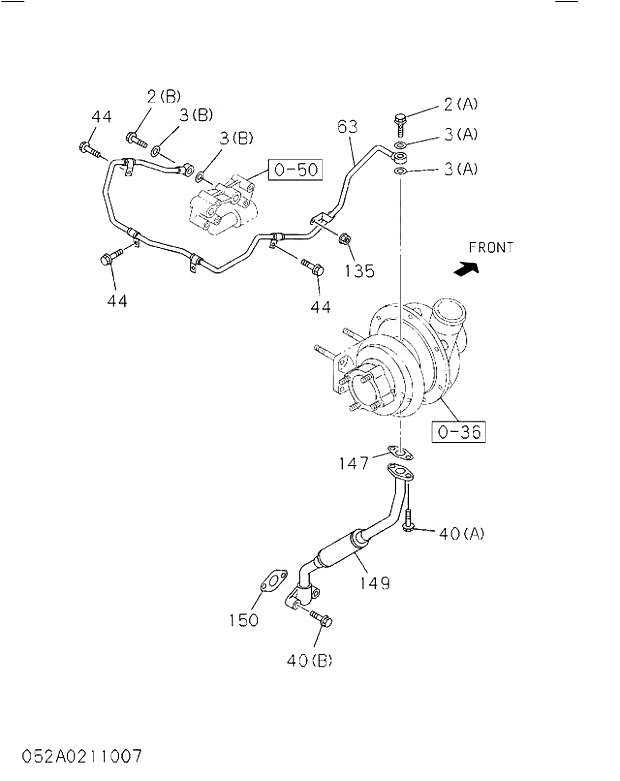

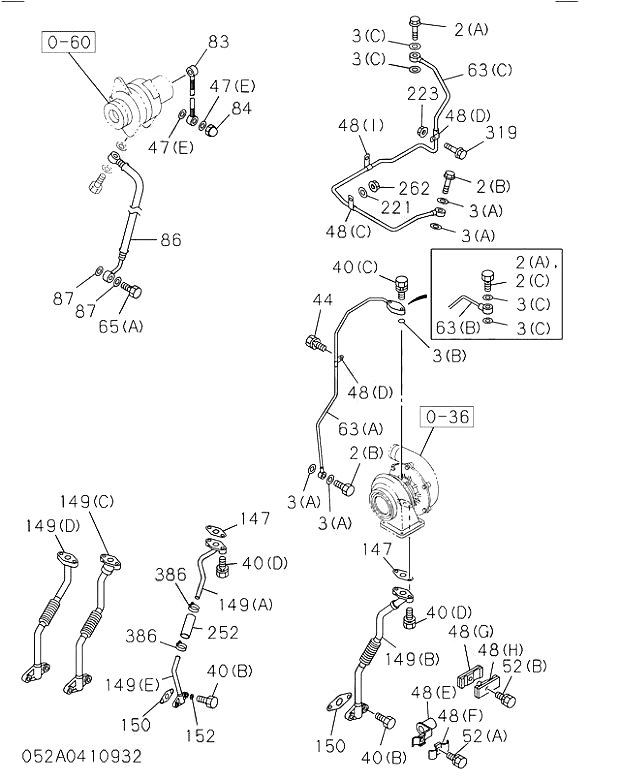

| 002(A) | 8972225710 | 1 | BOLT; EYE,OIL PIPE | 199909- | |
| 002(B) | 1096750810 | 1 | BOLT; EYE,OIL PIPE | 198508- | |
| 003(A) | 1096300840 | 2 | GASKET; EYE BOLT,OIL PIPE | 198508- | |
| 003(C) | 9095714120 | 2 | GASKET; EYE BOLT,OIL PIPE | 199909- | |
| 037(E) | 1133138730 | 1 | PIPE; OIL,FILTER TO COOLER | 199907- | |
| 040(A) | 0286808200 | 3 | BOLT; OIL PIPE | 199912-200302 | |
| 040(A) | 0286808400 | 1 | BOLT; OIL PIPE | 199912-200302 | |
| 040(A) | 9095714121 | 3 | BOLT; OIL PIPE | 200303-200512 | |
| 040(A) | 9095714122 | 1 | BOLT; OIL PIPE | 200303-200512 | |
| 040(A) | 0286508200 | 3 | BOLT; OIL PIPE | 200601- | |
| 040(A) | 0286508400 | 1 | BOLT; OIL PIPE | 200601- | |
| 040(B) | 0280808500 | 2 | BOLT; OIL PIPE | 198508-200512 | |
| 040(B) | 0280508500 | 2 | BOLT; OIL PIPE | 200601- | |
| 040(D) | 0280808220 | 2 | BOLT; OIL PIPE | 200208- | |
| 044 | 0280808120 | 1 | BOLT; CLIP,OIL PIPE | 199708-200512 | |
| 044 | 0280508120 | 1 | BOLT; CLIP,OIL PIPE | 200601- | |
| 047(A) | 9099211880 | 2 | GASKET; OIL PIPE | 198508- | |
| 047(B) | 1096234620 | 1 | GASKET; OIL PIPE | 199909- | |
| 047(B) | 8970265900 | 1 | GASKET; OIL PIPE | 199909-200302 | |
| 047(B) | 9099211881 | 1 | GASKET; OIL PIPE | 200303- | |
| 047(C) | 1096300850 | 2 | GASKET; OIL PIPE | 198508-200203 | |
| 047(C) | 9099211882 | 2 | GASKET; OIL PIPE | 200204-200509 | |
| 047(D) | 9099211883 | 2 | GASKET; OIL PIPE | 198508-200402 | |
| 047(D) | 9099211884 | 2 | GASKET; OIL PIPE | 200403-200509 | |
| 048(C) | 1097006952 | 1 | CLIP; OIL PIPE | 199902-200302 | |
| 048(C) | 9099211885 | 4 | CLIP; OIL PIPE | 199907- | |
| 048(C) | 9099211886 | 1 | CLIP; OIL PIPE | 200303- | |
| 048(D) | 5097040541 | 1 | CLIP; OIL PIPE | 198508- | |
| 048(I) | 9095250650 | 1 | CLIP; OIL PIPE | 199907-200302 | |
| 048(I) | 9099211887 | 1 | CLIP; OIL PIPE | 200303-200606 | |
| 048(I) | 0952350650 | 1 | CLIP; OIL PIPE | 200607- | |
| 062 | 1133115322 | 1 | PIPE; OIL,PUMP TO C/BL | 198508- | |
| 063(C) | 1133138720 | 1 | PIPE; OIL,TURBOCHARGER FEED | 199907- | |
| 065(A) | 1096750860 | 1 | BOLT; JOINT,OIL PIPE | 198508-200203 | |
| 065(A) | 9099211888 | 1 | BOLT; JOINT,OIL PIPE | 200204-200509 | |
| 065(B) | 9099211889 | 1 | BOLT; JOINT,OIL PIPE | 198508-200203 | |
| 065(B) | 9099211890 | 1 | BOLT; JOINT,OIL PIPE | 200204-200509 | |
| 110 | 9098440220 | 1 | NUT; CAP OIL PIPE | 198508-200107 | |
| 110 | 9099211891 | 1 | NUT; CAP OIL PIPE | 200108- | |
| 117 | 1096300830 | 2 | GASKET; JOINT,OIL PIPE | 198508- | |
| 128 | 9099175111 | 1 | CLIP; OIL PIPE,FILTER TO PUMP | 199705-200203 | |
| 128 | 9099211892 | 1 | CLIP; OIL PIPE,FILTER TO PUMP | 200204- | |
| 138 | 0286810200 | 1 | BOLT; CLIP FIX | 199708-200008 | |
| 138 | 0280808160 | 1 | BOLT; CLIP FIX | 200009-200512 | |
| 138 | 0280508160 | 1 | BOLT; CLIP FIX | 200601- | |
| 143 | 0280808400 | 4 | BOLT; OIL PIPE,OIL PUMP TO C/BL | 199708-200112 | |
| 143 | 0500408400 | 4 | BOLT; OIL PIPE,OIL PUMP TO C/BL | 200201-200512 | |
| 143 | 0505408400 | 4 | BOLT; OIL PIPE,OIL PUMP TO C/BL | 200601- | |
| 147 | 1096370582 | 1 | GASKET; OIL PIPE TO TURBOCHARGER | 198508-200204 | |
| 147 | 8943906411 | 1 | GASKET; OIL PIPE TO TURBOCHARGER | 200205- | |
| 149(D) | 1133138742 | 1 | PIPE; OIL RETURN,TURBOCHARGER | 199907- | |
| 150 | 1096370601 | 1 | GASKET; OIL PIPE TO C/BL | 200006- | |
| 221 | 9091646080 | 1 | WASHER; PL,CLIP FIX,OIL PIPE | 199907-200106 | |
| 221 | 9099211893 | 1 | WASHER; PL,CLIP FIX,OIL PIPE | 200107-200605 | |
| 221 | 0916146080 | 1 | WASHER; PL,CLIP FIX,OIL PIPE | 200606- | |
| 223 | 5123790010 | 1 | TUBE; DIST,OIL PIPE CLIP | 199907- | |
| 262 | 0911502080 | 1 | NUT; CLIP,OIL PIPE | 199907-200106 | |
| 262 | 9099211894 | 1 | NUT; CLIP,OIL PIPE | 200107-200602 | |
| 262 | 0911802080 | 1 | NUT; CLIP,OIL PIPE | 200603- | |
| 319 | 0280810300 | 1 | BOLT; OIL PIPE,TURBOCHARGER | 199907-200512 | |
| 319 | 0280510300 | 1 | BOLT; OIL PIPE,TURBOCHARGER | 200601- | |
| 475(B) | 1133136030 | 1 | PIPE; OIL,OIL FILTER TO INJ PUMP | 198508-200202 | |
| 475(B) | 9099211895 | 1 | PIPE; OIL,OIL FILTER TO INJ PUMP | 200203-200203 | |
| 475(B) | 9099211896 | 1 | PIPE; OIL,OIL FILTER TO INJ PUMP | 200204- | |
