Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |

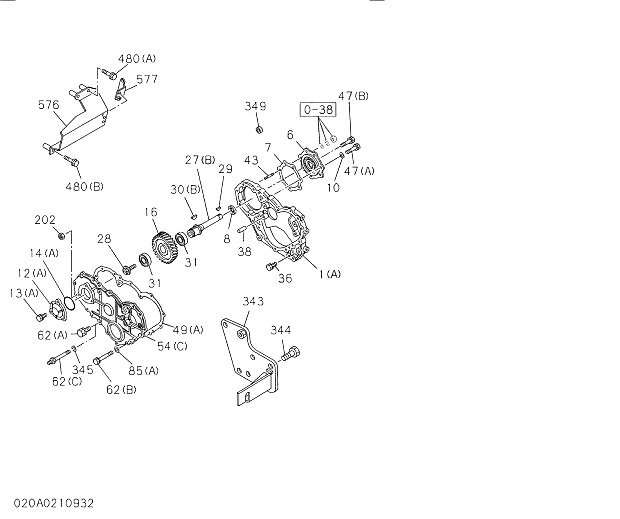

1(A) | 5113110113 | 1 | CASE; TIMING GEAR | 199211 - | |

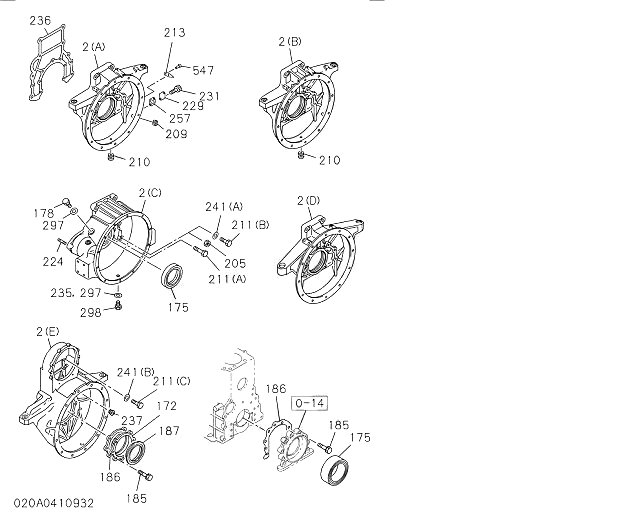

2(B) | 1113414283 | 1 | HOUSING; FLYWHEEL | 199211 - 200002 | |
2(B) | 5113110114 | 1 | HOUSING; FLYWHEEL | 200003 - | |
32 | 1113120140 | 1 | GASKET; GEAR CASE TO C/BL | 199211 - 199510 | C |
32 | 8943706710 | 1 | GASKET; GEAR CASE TO C/BL | 199511 - | |
35 | 1096254380 | 1 | SEAL; OIL,CRANKSHAFT FRT | 199211 - | |
36 | 500408450 | 2 | BOLT; GEAR CASE | 199211 - 199704 | A |
36 | 280808450 | 2 | BOLT; GEAR CASE | 199705 - | |
36 | 500408200 | 4 | BOLT; GEAR CASE | 199211 - 199704 | A |
36 | 286808200 | 4 | BOLT; GEAR CASE | 199705 - | |
38 | 9081510180 | 1 | PIN; GEAR CASE COVER | 199211 - | |

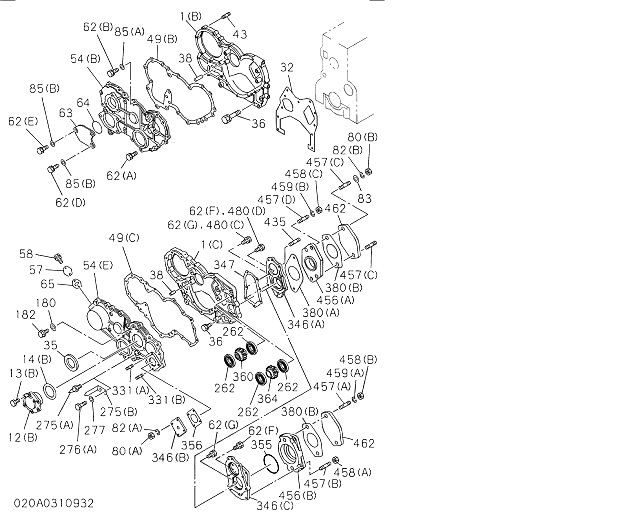

49(A) | 8943632690 | 1 | GASKET; GEAR CASE TO COVER | 199211 - 199510 | C |
49(A) | 8970222160 | 1 | GASKET; GEAR CASE TO COVER | 199511 - 200012 | C |
49(A) | 1113220600 | 1 | GASKET; GEAR CASE TO COVER | 200101 - | |
54(A) | 1113210790 | 1 | COVER; GEAR CASE | 199211 - | |
57 | 5113210090 | 2 | COVER; TIMING CHECK HOLE | 199211 - | |
58 | 500406140 | 4 | BOLT; CHECK HOLE COVER | 199211 - 199704 | A |
58 | 280806120 | 4 | BOLT; CHECK HOLE COVER | 199705 - | |
62(A) | 5090000841 | 5 | BOLT; COVER | 199211 - 199704 | A |
62(A) | 280808500 | 5 | BOLT; COVER | 199705 - | |
62(A) | 501408250 | 7 | BOLT; COVER | 199211 - 199704 | A |
62(A) | 286808250 | 7 | BOLT; COVER | 199705 - | |
65 | 1112820130 | 2 | GASKET; COVER,TIMING CHECK HOLE | 199211 - 199510 | C |
65 | 8970276011 | 2 | GASKET; COVER,TIMING CHECK HOLE | 199511 - | |
85 | 9091605080 | 5 | WASHER; PL,COVER | 199211 - | |
175 | 1096254391 | 1 | SEAL; OIL,CR/SHF,RR | 199211 - 200009 | |
175 | 8970728231 | 1 | SEAL; OIL,CR/SHF,RR | 200010 - | |
205 | 9991104140 | 1 | NUT; HSG | 199211 - 199703 | C |
205 | 911602140 | 1 | NUT; HSG | 199704 - | |
211(A) | 9910664650 | 2 | BOLT; HSG | 199211 - 199701 | A |
211(A) | 288914600 | 2 | BOLT; HSG | 199702 - | |
211(A) | 9910664500 | 5 | BOLT; HSG | 199211 - 199701 | A |
211(A) | 288914450 | 5 | BOLT; HSG | 199702 - | |
211(A) | 500408250 | 7 | BOLT; HSG | 199211 - | |
224 | 9944112350 | 3 | STUD; STARTER | 199211 - | |
241(A) | 9096510690 | 8 | WASHER; PL,HSG | 199211 - 199702 | |
275(A) | 5113270090 | 1 | POINTER; TIMING CHECK HOLE | 199211 - | |
