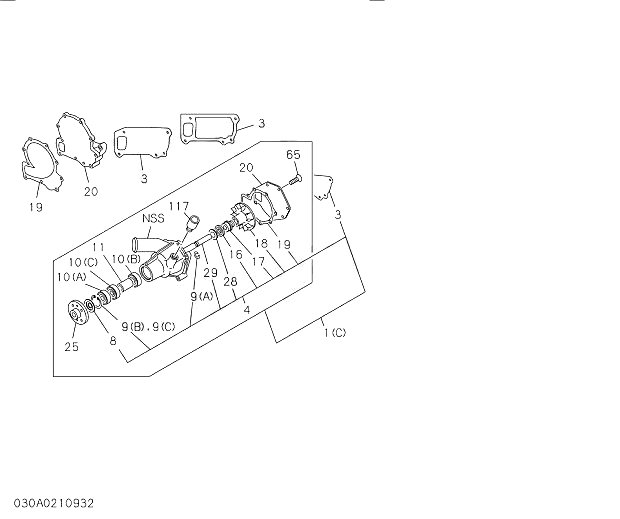

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
| 1(A) | 1136108171 | 1 | PUMP ASM; WATER,W/GASKET | 199211 - 199811 | ||
| 1(A) | 1136500161 | 1 | PUMP ASM; WATER,W/GASKET | 199812 - | ||
| 3 | 1136140131 | 1 | GASKET; PUMP TO C/BL | 199211 - 199510 | C | |
| 3 | 8943706610 | 1 | GASKET; PUMP TO C/BL | 199511 - | ||
| 4(A) | 1878107741 | 1 | REPAIR KIT; WATER PUMP | 199211 - 200003 | ||
| 4(A) | 1878112530 | 1 | REPAIR KIT; WATER PUMP | 200004 - | ||
| 7 | 1136411281 | 1 | PULLEY; WATER PUMP | 199211 - | ||
| 8 | 5136390010 | 1 | THROWER; DUST,WATER PUMP | 199211 - | ||
| 9(A) | 9099521430 | 1 | RING; SNAP,WATER PUMP | 199211 - | ||
| 9(B) | 9091801520 | 1 | RING; SNAP,WATER PUMP | 199211 - | ||
| 10(A) | 5098000510 | 1 | BEARING; WATER PUMP | 199211 - | ||
| 10(B) | 1098001700 | 1 | BEARING; WATER PUMP | 199211 - | ||
| 10(C) | 5098000500 | 1 | BEARING; WATER PUMP | 199211 - | ||
| 11 | 1136340200 | 1 | SPACER; BRG,WATER PUMP | 199211 - | ||
| 17 | 5136200062 | 1 | SEAL UNIT; WATER PUMP | 199211 - 200003 | A | |
| 17 | 1136200230 | 1 | SEAL UNIT; WATER PUMP | 200004 - | ||
| 18 | 9136218020 | 1 | IMPELLER; WATER PUMP | 199211 - | ||
| 19(A) | 9136136130 | 1 | GASKET; COVER TO BODY | 199211 - | ||
| 20(A) | 9136128020 | 1 | COVER; WATER PUMP | 199211 - | ||
| 24 | 5090300101 | 1 | BOLT; WATER PUMP | 199211 - 199707 | A | |
| 24 | 0286810350 | 1 | BOLT; WATER PUMP | 199708 - | ||
| 24 | 0500410500 | 2 | BOLT; WATER PUMP | 199211 - 199707 | A | |
| 24 | 0280810500 | 2 | BOLT; WATER PUMP | 199708 - | ||
| 24 | 0500410350 | 1 | BOLT; WATER PUMP | 199211 - 199707 | A | |
| 24 | 0280810700 | 1 | BOLT; WATER PUMP | 199708 - | ||
| 25(A) | 1136420053 | 1 | CENTER; WATER PUMP | 199211 - | ||
| 28(A) | 1095030700 | 1 | WASHER; WATER PUMP | 199211 - | ||
| 29 | 1136310740 | 1 | SHAFT; WATER PUMP | 199211 - 199705 | ||
| 29 | 9136218021 | 1 | SHAFT; WATER PUMP | 199706 - | ||
| 65(A) | 9030908200 | 3 | SCREW; COVER,WATER PUMP | 199211 - | ||
| 66 | 5096250550 | 1 | SEAL; SECONDARY | 199211 - | ||
| 117 | 8972498951 | 1 | CONNECTOR; BYPASS | 199211 - |
