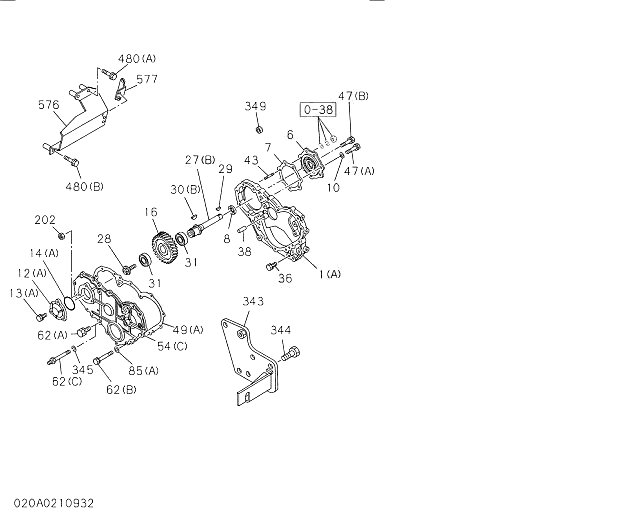

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
001(A) | 8973034112 | 1 | CASE; TIMING GEAR | 200711- | ||
2 | 8980711013 | 1 | HOUSING; FLYWHEEL | 200711- | ||
40 | 911802080 | 2 | NUT; GEAR CASE | 200711- | ||
103 | 8973517040 | 1 | SEAL; OIL,CR/SHF,FRT | 200711- | ||
134(A) | 410108600 | 1 | STUD; TIMING GEAR CASE | 200711- | ||
134(B) | 8972621461 | 1 | STUD; TIMING GEAR CASE | 200711- | ||
172 | 8972310302 | 1 | RETAINER; CR/SHF | 200711- | ||
175 | 5096250940 | 1 | SEAL; OIL,CR/SHF,RR | 200711- | ||
185 | 280506200 | 8 | BOLT; RET TO C/BL | 200711- | ||
211 | 281510250 | 6 | BOLT; HSG | 200711- | ||
367(A) | 280508600 | 6 | BOLT; GEAR CASE | 200711- | ||
367(B) | 280508800 | 2 | BOLT; GEAR CASE | 200711- | ||
487 | 8972207400 | 2 | COVER; HOLE | 200711-200904 | ||
531 | 8944256852 | 1 | CAP; OIL FILLER | 200711- | ||
532 | 8941236231 | 1 | GASKET; CAP | 200711- |
