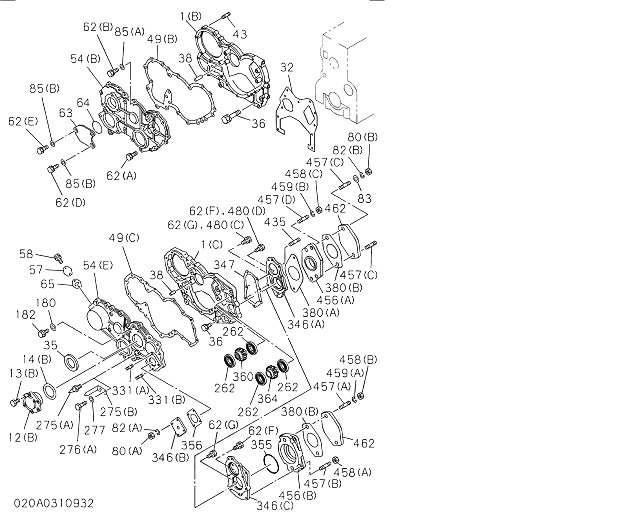

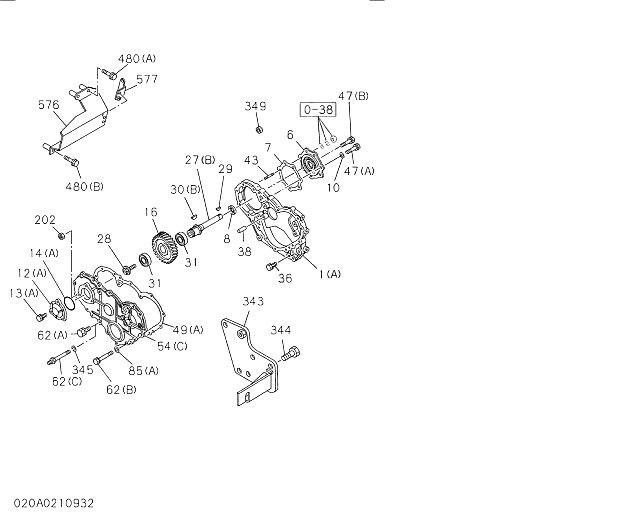

Двигатели-4jj1-xysa02-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
001(A)89794526121CASE; TIMING GEAR200610-
289804469901HOUSING; FLYWHEEL200610-
3289731222121GASKET; GEAR CASE TO C/BL200610-
036(A)2805081601BOLT; GEAR CASE200610-
036(B)28050820016BOLT; GEAR CASE200610-
036(C)2805083501BOLT; GEAR CASE200610-
036(D)2805084502BOLT; GEAR CASE200610-
036(E)2805086001BOLT; GEAR CASE200610-
036(F)2865083003BOLT; GEAR CASE200610-
3889713542302PIN; GEAR CASE COVER200610-
049(A)89794529801GASKET; GEAR CASE TO COVER200610-
050(A)89735480825STUD200610-
050(B)89736146521STUD200610-
51897354697114BOLT; GEAR CASE COVER200610-
054(A)89801296021COVER; GEAR CASE200610-
6389736733621COVER; P/S200610-
6489710967901GASKET; COVER,P/S200610-
7989737039021BRACKET; GEAR CASE COVER200610-
080(A)9118020602NUT; COVER200610-
080(B)9118020803NUT; COVER200610-
081(A)4101061602STUD; GEAR CASE COVER FIX200610-
081(B)4914083002STUD; GEAR CASE COVER FIX200610-
989118020802NUT; STUD,INJ PUMP200610-
099(A)89736944901STUD; INJ PUMP200610-
099(B)89736945001STUD; INJ PUMP200610-
10389735170401SEAL; OIL,CR/SHF,FRT200610-
12389737172011COVER; TIMING,LWR200610-
1242805061603BOLT; TIMING COVER200610-
17289717598631RETAINER; CR/SHF200610-201012A
17289737982601RETAINER; CR/SHF201101-
17589707156111SEAL; OIL,CR/SHF,RR200610-
1852865082505BOLT; RET TO C/BL200610-
2059118011001NUT; HSG200610-
211(A)2865103003BOLT; HSG200610-
211(B)2875123504BOLT; HSG200610-
211(C)50900022703BOLT; HSG200610-
48789722074001COVER; HOLE200610-
62089732882821GASKET; GEAR CASE200610-
62089733163121GASKET; GEAR CASE200610-
62089733163221GASKET; GEAR CASE200610-
