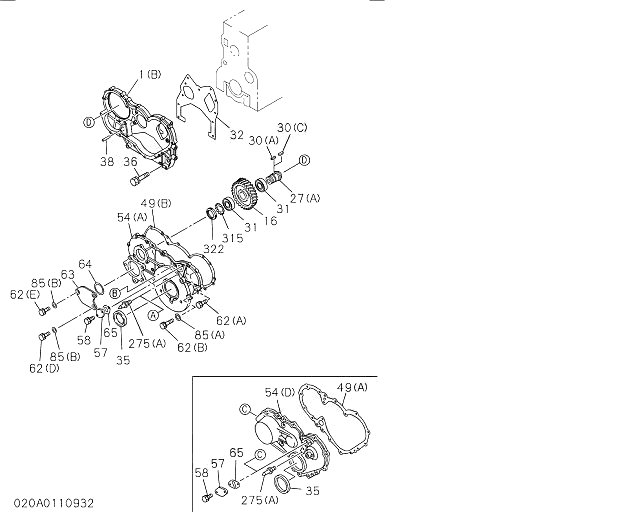

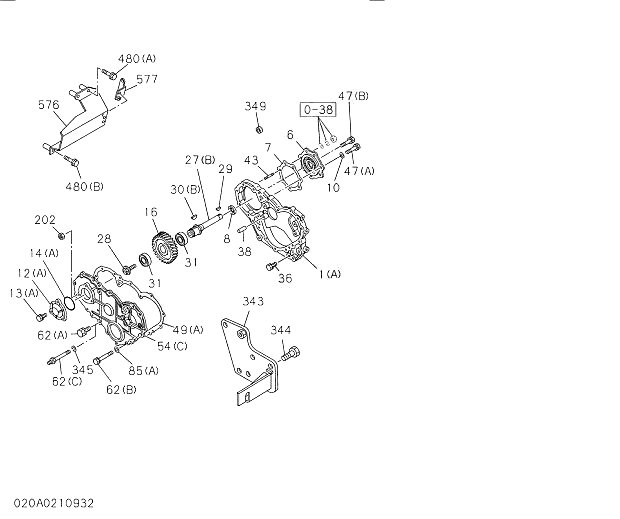

Двигатели-4jg1-ph02-3-hop-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
001(B)89721900141CASE; TIMING GEAR199311-
00289721811211HOUSING; FLYWHEEL199311-200010
00289730545111HOUSING; FLYWHEEL200011-
03289711724211GASKET; GEAR CASE TO C/BL199311-200302
03289712942711GASKET; GEAR CASE TO C/BL200303-
03605004081803BOLT; GEAR CASE199311-200907A
03605004082003BOLT; GEAR CASE199311-200907A
03605004084502BOLT; GEAR CASE199311-200907A
03605054081803BOLT; GEAR CASE200908-
03605054082003BOLT; GEAR CASE200908-
03605054084502BOLT; GEAR CASE200908-
054(B)89723121411COVER; GEAR CASE199311-
057(A)51132100902COVER; TIMING CHECK HOLE199311-200103
057(A)89730545121COVER; TIMING CHECK HOLE200104-200108
057(A)89730545132COVER; TIMING CHECK HOLE200109-
057(B)89731168211COVER; TIMING CHECK HOLE200104-200108
05802808061204BOLT; CHECK HOLE COVER199311-200103
05889731168222BOLT; CHECK HOLE COVER200104-200108
05802808061602BOLT; CHECK HOLE COVER200104-200108
05889731168234BOLT; CHECK HOLE COVER200109-
062(A)99582125501BOLT; COVER199311-200201A
062(A)05831125501BOLT; COVER200202-200511A
062(A)05833125501BOLT; COVER200512-
062(B)02808083008BOLT; COVER199806-200511A
062(B)02808086007BOLT; COVER199806-200511A
062(B)02805083008BOLT; COVER200512-
062(B)02805086007BOLT; COVER200512-
06589711869802GASKET; COVER,TIMING CHECK HOLE199501-200103C
06589702760112GASKET; COVER,TIMING CHECK HOLE200104-
082(C)90916070801WASHER; LK,COVER199311-200605A
082(C)09161070801WASHER; LK,COVER200606-
10350962507901SEAL; OIL,CR/SHF,FRT199311-
17589707156111SEAL; OIL,CR/SHF,RR199311-
20509115021002NUT; HSG199311-200602A
20509118021002NUT; HSG200603-
21150900022703BOLT; HSG199311-
21102868103001BOLT; HSG199905-200512A
21102865103001BOLT; HSG200601-
22689410772602STUD; HSG199905-
38089414011711GASKET; COVER199311-201010C
38089728769401GASKET; COVER201011-
48789722074001COVER; HOLE199905-
52990815102002PIN; STRAIGHT199311-
