| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |

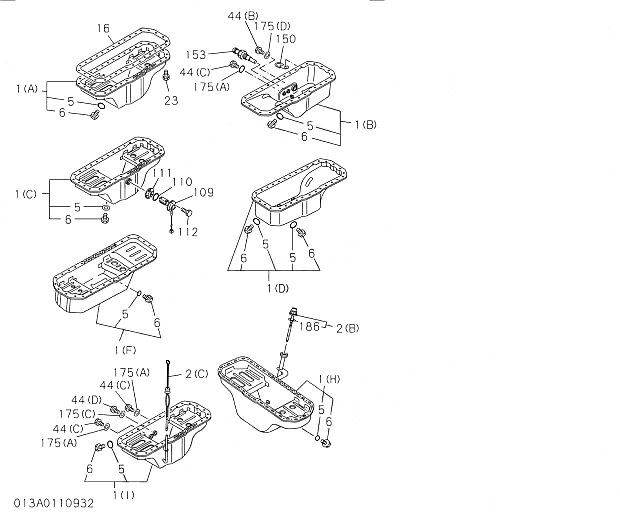

| 001(C) | 8971046280 | 1 | PAN ASM; OIL | 198911- | ||
| 002(B) | 8970209850 | 1 | GAUGE; OIL LEVEL | 198911- | ||
| 003(A) | 1096230570 | 1 | GASKET; DRAIN PLUG | 198911- | ||
| 004(A) | 9096620120 | 1 | PLUG; DRAIN,OIL | 198911- | ||
| 008(B) | 8970209320 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 198911- | ||
| 009(B) | 5096230020 | 2 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 198911- | ||
| 010 | 0500408160 | 1 | BOLT; GUIDE TUBE | 198911-199902 | A | |
| 010 | 0280808120 | 1 | BOLT; GUIDE TUBE | 199903-200512 | A | |
| 010 | 0280508120 | 1 | BOLT; GUIDE TUBE | 200601- | ||
| 016 | 8943706660 | 1 | GASKET; OIL PAN TO C/BL | 198911-200209 | C | |
| 016 | 8973524030 | 1 | GASKET; OIL PAN TO C/BL | 200210- | ||
| 023(A) | 0500408180 | 24 | BOLT; OIL PAN | 198911-200907 | A | |
| 023(A) | 0505408180 | 24 | BOLT; OIL PAN | 200908- | ||
| 195 | 8971312230 | 1 | SENSOR; OIL LEVEL | 198911- | ||
| 196 | 1096233550 | 1 | GASKET; SENSOR | 198911- | ||
| 198 | 5113690720 | 1 | SPACER; GUIDE TUBE | 198911- | ||
| 199 | 0501406280 | 3 | BOLT; SPACER | 198911-199902 | A | |
| 199 | 0280806220 | 3 | BOLT; SPACER | 199903- | ||
| 225 | 9091605080 | 1 | WASHER; PL | 198911-199902 |
