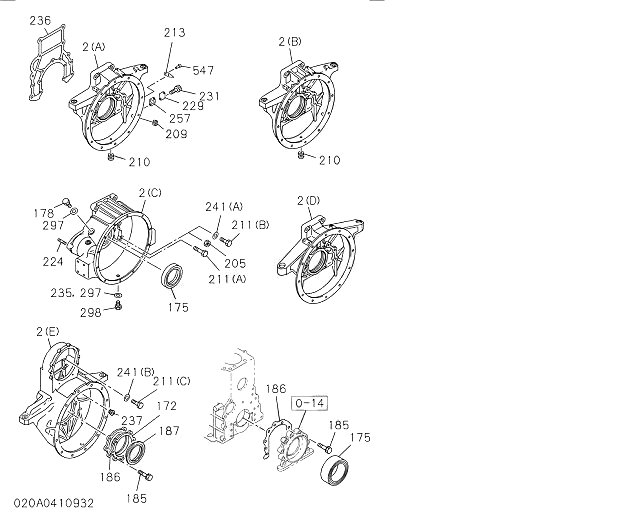

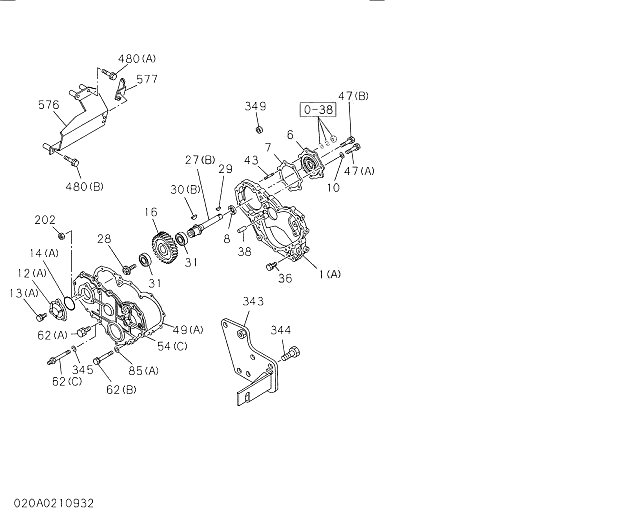

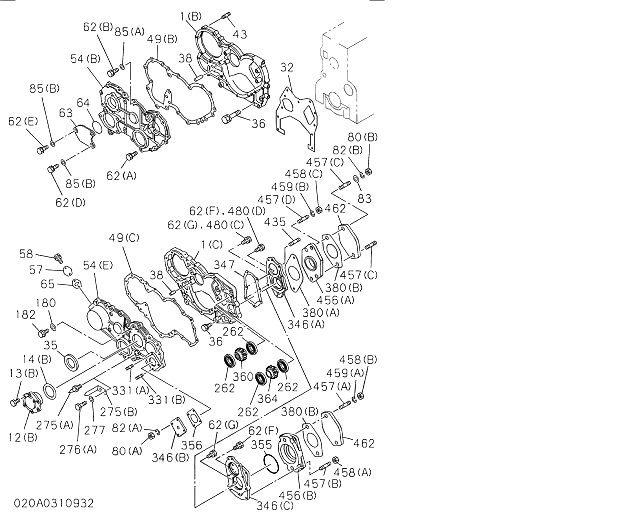

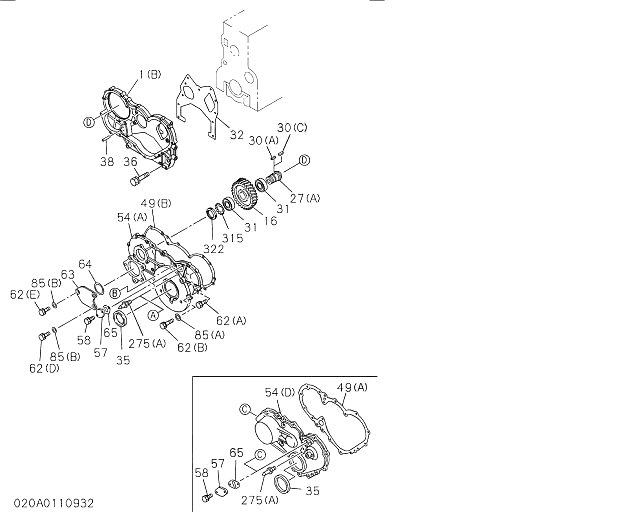

Двигатели-4bg1-tcg05-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
001(C)89445097521CASE; TIMING GEAR198911-
002(B)11134158501HOUSING; FLYWHEEL200207-
365004082004BOLT; GEAR CASE198911-199902C
365004084502BOLT; GEAR CASE198911-199902C
362808082204BOLT; GEAR CASE199903-
362868084002BOLT; GEAR CASE199903-200203A
362808084502BOLT; GEAR CASE200204-200512A
362805084502BOLT; GEAR CASE200601-
4291122905811DOWEL; GEAR CASE COVER198911-
049(C)89432101601GASKET; GEAR CASE TO COVER199811-200012A
049(C)89723330101GASKET; GEAR CASE TO COVER200101-
054(C)89712983001COVER; GEAR CASE198911-
5689437067111GASKET; GEAR CASE TO COVER198911-
5751132100902COVER; TIMING CHECK HOLE198911-
585004061404BOLT; CHECK HOLE COVER198911-199902C
582808061204BOLT; CHECK HOLE COVER199903-200512A
582805061204BOLT; CHECK HOLE COVER200601-
605004082507BOLT; COVER TO CASE198911-199902
605004088001BOLT; COVER TO CASE198911-199902A
6091122905827BOLT; COVER TO CASE199903-
602808088001BOLT; COVER TO CASE199903-200512A
602805088001BOLT; COVER TO CASE200601-
062(B)10904407112BOLT; COVER198911-
062(B)2808105003BOLT; COVER199903-200512A
062(B)2805105003BOLT; COVER200601-
6589702760112GASKET; COVER,TIMING CHECK HOLE198911-
103(C)10962543801SEAL; OIL,CR/SHF,FRT198911-
1699115020802NUT; COVER198911-200602A
1699118020802NUT; COVER200603-
17589707282311SEAL; OIL,CR/SHF,RR200010-
211(A)91122905837BOLT; HSG198911-200512A
211(A)5054082507BOLT; HSG200601-
34190411085502STUD; COVER GEAR CASE198911-200604A
3414101085502STUD; COVER GEAR CASE200605-
