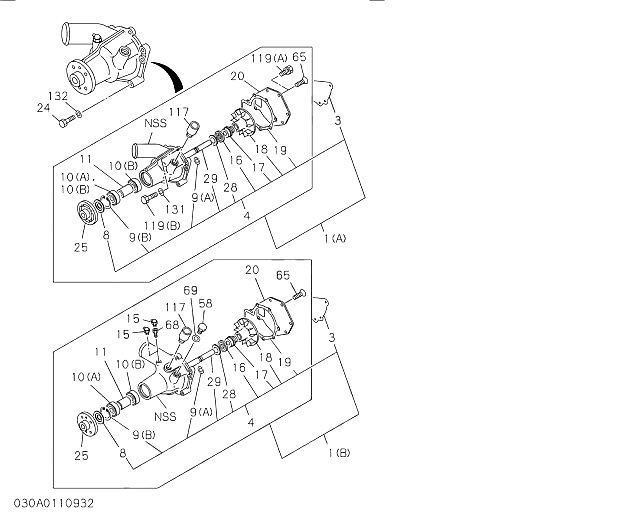

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | Наличие на складе |
001(B) | 8972530281 | 1 | PUMP ASM; WATER,W/GASKET | 198911- | ||
3 | 8943706610 | 1 | GASKET; PUMP TO C/BL | 198911- | ||
004(B) | 5878143200 | 1 | REPAIR KIT; WATER PUMP | 198911- | ||
007(B) | 1136411650 | 1 | PULLEY; WATER PUMP | 198911- | ||
9 | 9091801520 | 1 | RING; SNAP,WATER PUMP | 198911- | ||
11 | 5136340020 | 1 | SPACER; BRG,WATER PUMP | 198911- | ||
16 | 5096250550 | 1 | SEAL; OIL,WATER PUMP | 198911- | ||
18 | 8972322500 | 1 | IMPELLER; WATER PUMP | 198911- | ||
19 | 8972322480 | 1 | GASKET; COVER TO BODY | 198911- | ||
20 | 8972322470 | 1 | COVER; WATER PUMP | 198911- | ||
25 | 5136420072 | 1 | CENTER; WATER PUMP | 198911- | ||
26 | 5136390010 | 1 | COVER; DUST,WATER PUMP | 198911- | ||
027(A) | 5098000510 | 1 | BEARING; WATER PUMP | 198911- | ||
027(B) | 5098000500 | 1 | BEARING; WATER PUMP | 198911- | ||
027(C) | 1098001700 | 1 | BEARING; WATER PUMP | 198911- | ||
28 | 1095030700 | 1 | WASHER; WATER PUMP | 198911- | ||
29 | 1136310740 | 1 | SHAFT; WATER PUMP | 198911- | ||
30 | 9099521430 | 1 | RING; SNAP,WATER PUMP SHAFT | 198911- | ||
31 | 8972498951 | 1 | PIPE; SUCTION,INL | 200004- | ||
32 | 8972322490 | 1 | SEAL UNIT; WATER PUMP | 198911- | ||
34 | 9030908200 | 3 | SCREW; COVER TO BODY,WATER PUMP | 198911- | ||
36 | 280810350 | 1 | BOLT; WATER PUMP TO C/BL | 198911-200512 | A | |
36 | 280810450 | 2 | BOLT; WATER PUMP TO C/BL | 198911-200512 | A | |
36 | 280810700 | 1 | BOLT; WATER PUMP TO C/BL | 198911-200512 | A | |
36 | 280510350 | 1 | BOLT; WATER PUMP TO C/BL | 200601- | ||
36 | 280510450 | 2 | BOLT; WATER PUMP TO C/BL | 200601- | ||
36 | 280510700 | 1 | BOLT; WATER PUMP TO C/BL | 200601- |
