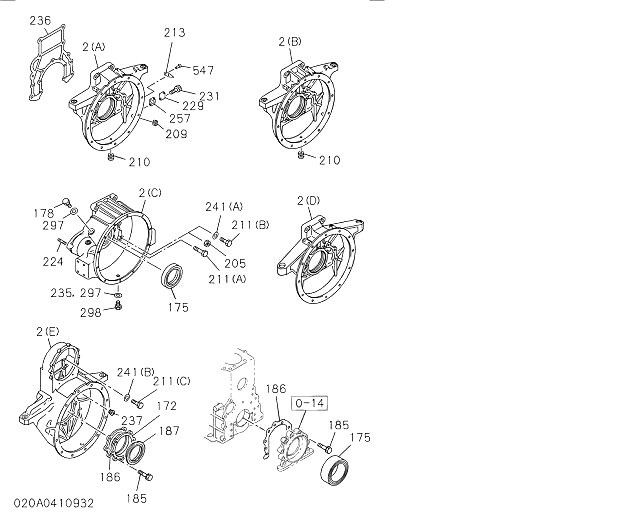

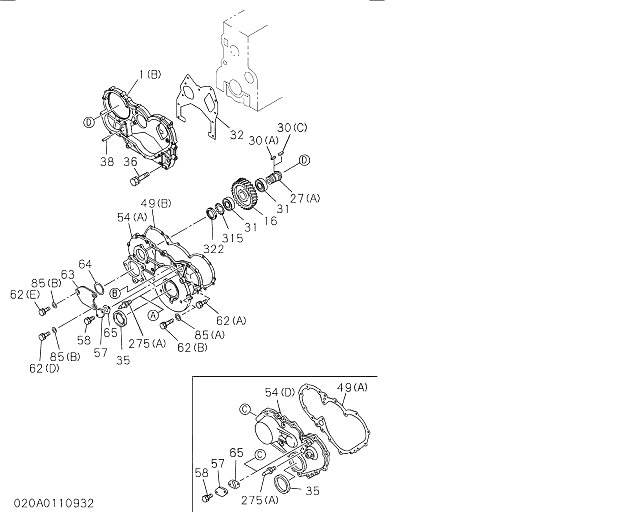

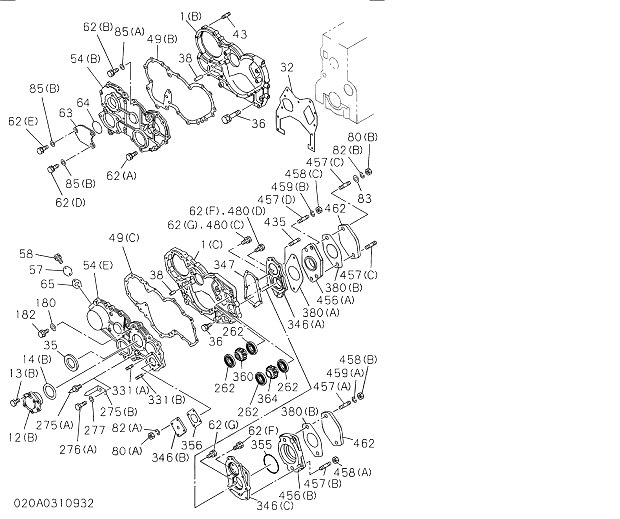

Двигатели-4bd1-tpz02-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAНаличие на складе
1(A)51131101131CASE; TIMING GEAR199311 -
2(B)89704520721HOUSING; FLYWHEEL199311 -
3211131201401GASKET; GEAR CASE TO C/BL199311 - 200012C
3289437067101GASKET; GEAR CASE TO C/BL200101 -
365004082004BOLT; GEAR CASE199311 - 200005
362868082004BOLT; GEAR CASE200006 -
365004084502BOLT; GEAR CASE199311 - 200005
362868084002BOLT; GEAR CASE200006 -
3890815101801PIN; GEAR CASE COVER199311 -
49(A)89436326901GASKET; GEAR CASE TO COVER199311 - 200012C
49(A)11132206001GASKET; GEAR CASE TO COVER200101 -
54(A)11132107901COVER; GEAR CASE199311 -
5751132100902COVER; TIMING CHECK HOLE199311 -
585004061404BOLT; CHECK HOLE COVER199311 - 200005
582808061204BOLT; CHECK HOLE COVER200006 -
605004082507BOLT; COVER TO CASE199311 - 200005
602808082507BOLT; COVER TO CASE200006 -
6050900008415BOLT; COVER TO CASE199311 - 200005
6010904407115BOLT; COVER TO CASE200006 -
6511128201302GASKET; COVER,TIMING CHECK HOLE199311 - 200012C
6589702760112GASKET; COVER,TIMING CHECK HOLE200101 -
10310962543801SEAL; OIL,CR/SHF,FRT199311 -
10991132760201POINTER; TIMING199311 -
166(A)89437083501GASKET; RET TO C/BL199311 -
172(A)89411456111RETAINER; CR/SHF199311 - 199512A
172(A)89707952001RETAINER; CR/SHF199601 -
17510962536301SEAL; OIL,CR/SHF,RR199311 - 200009
17589707282311SEAL; OIL,CR/SHF,RR200010 -
1855004082207BOLT; RET TO C/BL199311 - 199912
1852868082507BOLT; RET TO C/BL200001 -
20490915050603WASHER; LK,HSG199311 -
211(B)2080061203BOLT; HSG199311 -
22499441123302STUD; STARTER199311 -
24889704280101COVER; DUST,FLYWHEEL HSG RET199311 -
25191134913411COVER; TIMING,CHECK HOLE199311 -
